首頁 》 研華產品 》智能系統 》工業母板 》Mini-ITX主板 》AIMB-258

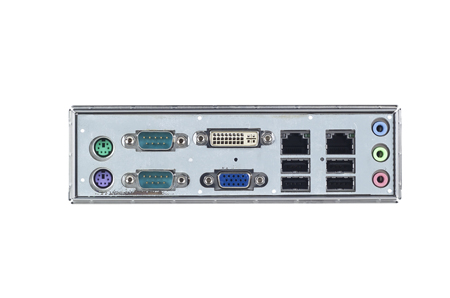

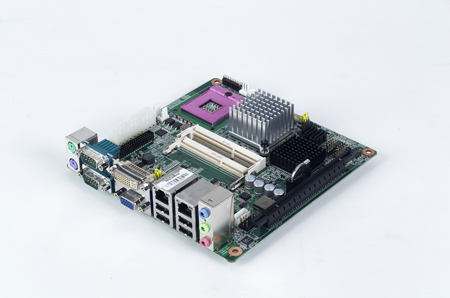

AIMB-258
Intel? Core? 2 Duo Mini-ITX帶VGA/DVI/LVDS,6 COM,和雙千兆網口
Main Features
  • 支持Intel ® uFC-PGA 478 Core™ 2 Duo mobile處理器，最高可達4 GB
  • 雙通道DDR3 800/1066 MHz SDRAM
  • Intel® GM45和 ICH9M支持 FSB 667/800/1066 MHz
  • 支持DirectX10，OpenGL 2.0
  • 支持雙顯示VGA，LVDS和 DVI
  • PCIe x16擴展槽，可支持顯卡
  • 豐富的I/O接口，6個COM口，8個USB和16-bit GPIO
  • 雙千兆網絡
  • 支持 iTPM 1.2
     數據表(PDF)    技術資料下載
  規格表
AIMB-258G2-00A1E
Expansion Slots PCIe x16
Form Factor Form Factor mini ITX
Processor CPU Intel Core 2 Duo T9400 / P8600 / P8400 / Intel Celeron M 575
CPU TDP 35 / 25 /31 W
Frequency 2.53 / 2.4 / 2.26 / 2.0 GHz
Core Number 2002-2-1
L2 Cache 6 / 3/ 1 / 1 MB
BIOS Award SPI 16 Mbit
Chipset Intel GM45, ICH9M
Memory Technology DDR3 800 / 1066 MHz
Max. Capacity 4 GB
Socket 2 x 204-pin SODIMM
Display Controller Intel GM45 GMCH integrated
Graphic Memory Share with system memory up to 384 MB
LCD (TTL/LVDS/eDP) LVDS: Single channel 18 / 24-bit/Dual channel 36/48-bit
DDI (HDMI/DVI/DisplayPort) DVI
Multiple Display Dual
Expansion PCI Express x 16 1
Ethernet Controller GbE1: Realtek RTL8111C; GbE2: Realtek RTL8111C
Speed 10/ 100/ 1000 Mbps
Connector RJ45 x 2
Audio Audio Interface HD Audio
CODEC Realtek ALC888, High Definition Audio (HD)
Connector 3 (Mic-in, Line-in, Line-out)
Watchdog Timer WatchDog Timer Yes
Storage SATA 2 x SATA II (Max. Data Transfer Rate 300 MB/s)
CompactFlash CompactFlash Type I/II (Primary Master IDE Channel)
I/O USB2.0 8
GPIO 1
COM Port 4 (RS-232)
Keypad 2
Power Power Type ATX, AT
Connector ATX20P
Environment Operational Temperature 0 ~ 60° C (32 ~ 140° F)
Non-Operational Temperature -20~ 70° C
Vibration Resistance 3.5 Grms (non OP)
Physical Dimension (mm) 170x 170 mm (without heatsink)
Weight 1.04 kg (1.72 lb), weight of total package
Construction with CPU cooler design
Operating System Microsoft Windows Yes
Linux Yes
SUSIAccess Yes
Certification EMC CE, FCC
